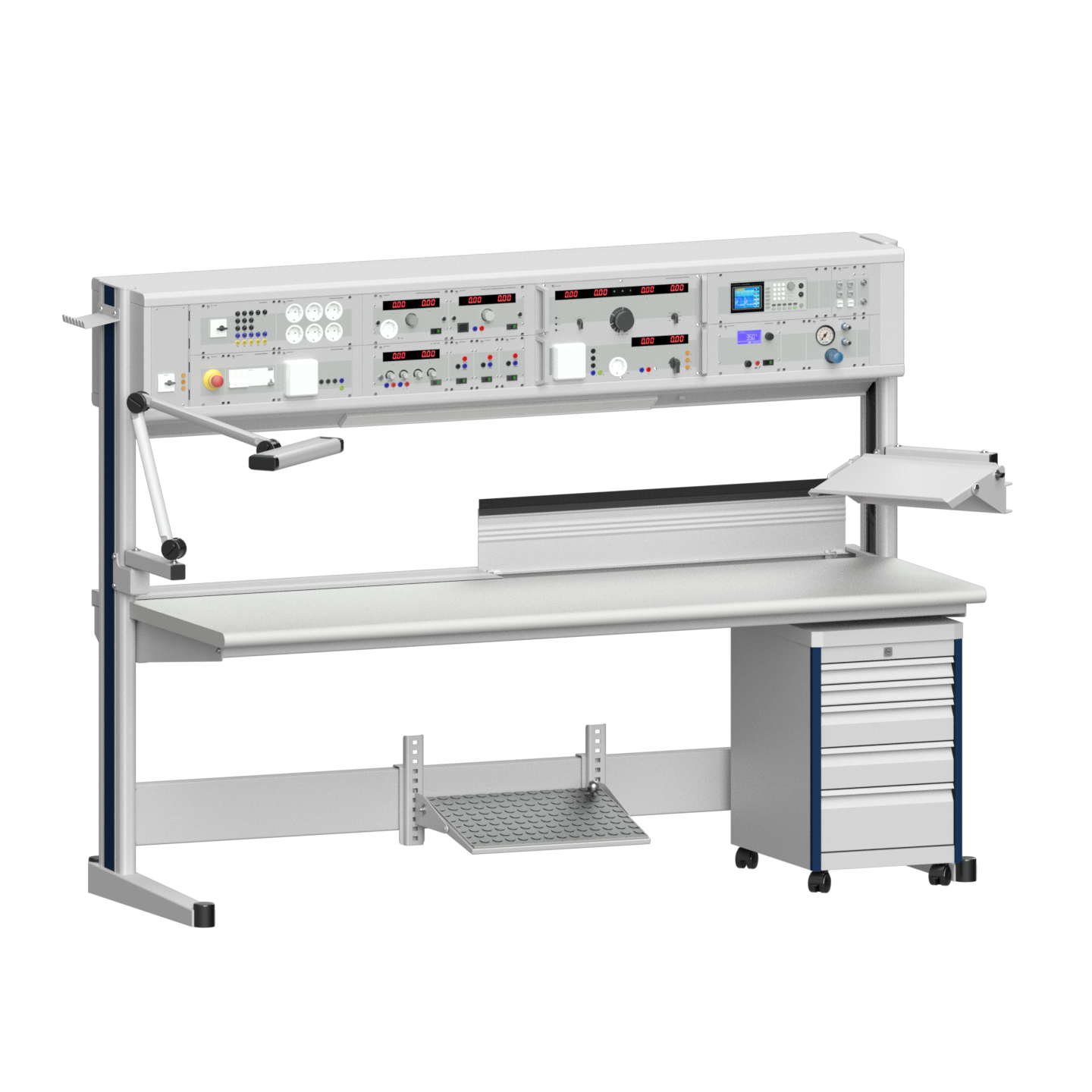

Innovative. Dynamic. Timeless.
The table for a thousand ideas.

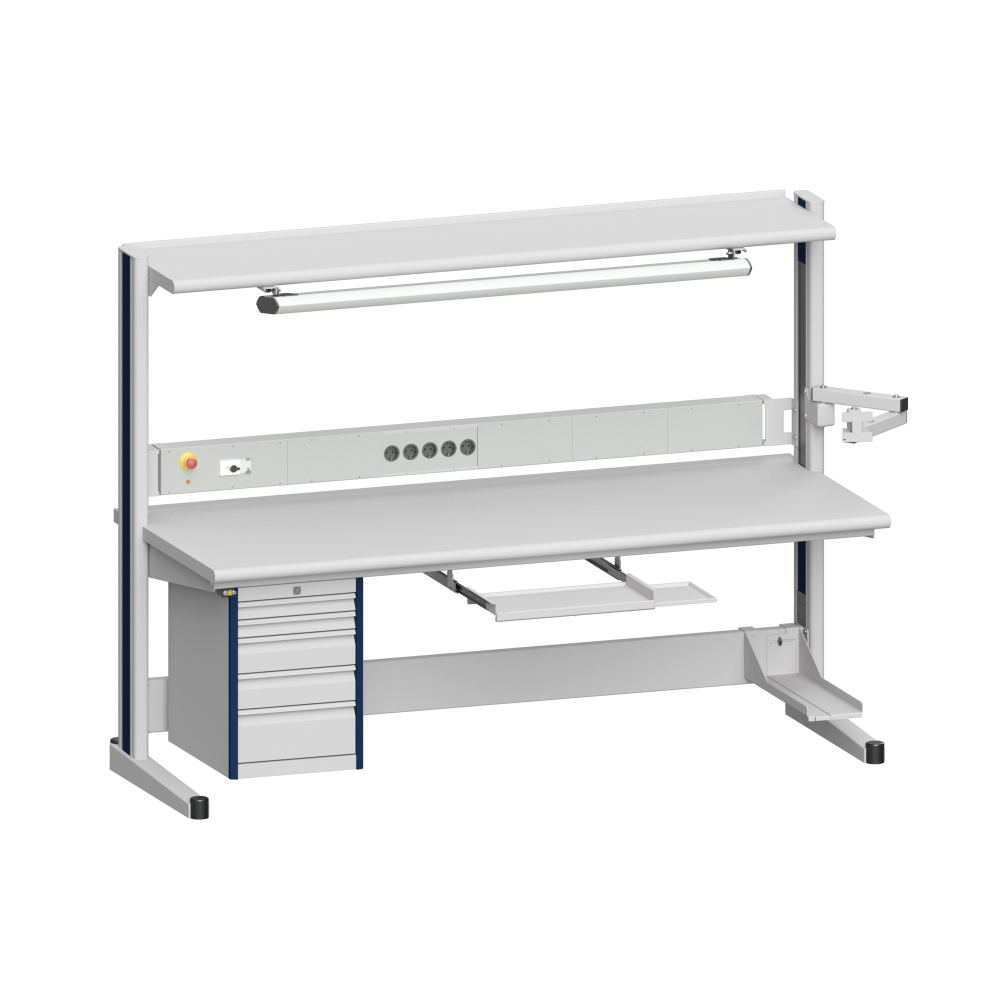

QUADRO is as versatile as the products that are produced on it.
Tailored to the complex work processes in assembly, laboratories, research facilities and training facilities, QUADRO leaves nothing to be desired. You can design it exactly as you wish and as the purpose requires.
QUADRO is much more than just a table. As a premium product from Karl, the table system combines high-quality workmanship, excellent functionality and sophisticated ergonomics to create a modern, innovative workstation system.
With its timeless design, light grey base color and decorative colored accents, QUADRO creates a positive and motivating atmosphere in the workplace and helps to release energy and creativity.
QUADRO with C-foot
- Table height: individually adjustable
- Stepless height adjustment of the table top and accessories
- Load capacity: max. surface load 200 kg
- Steel frame for mounting the table top
- Cross connection between the QUADRO columns for stabilization
- Conductive powder-coated, (RAL 7035)
- Color accents through decorative elements in the columns
- Foot section with two easy-to-operate, conductive height adjustment elements for leveling the worktables
- ESD version with central earthing point
QUADRO columns
- QUADRO column made of aluminum as a functional and visual basic element
- Power, compressed air and data cables can be laid in the two cable ducts of the QUADRO columns
- Integrated brush strips, e.g. for cable routing in conjunction with cable tray and / or 19" structure for measuring and testing technology
- Integrated Schuko sockets on the inside, e.g. for electrifying the top shelves

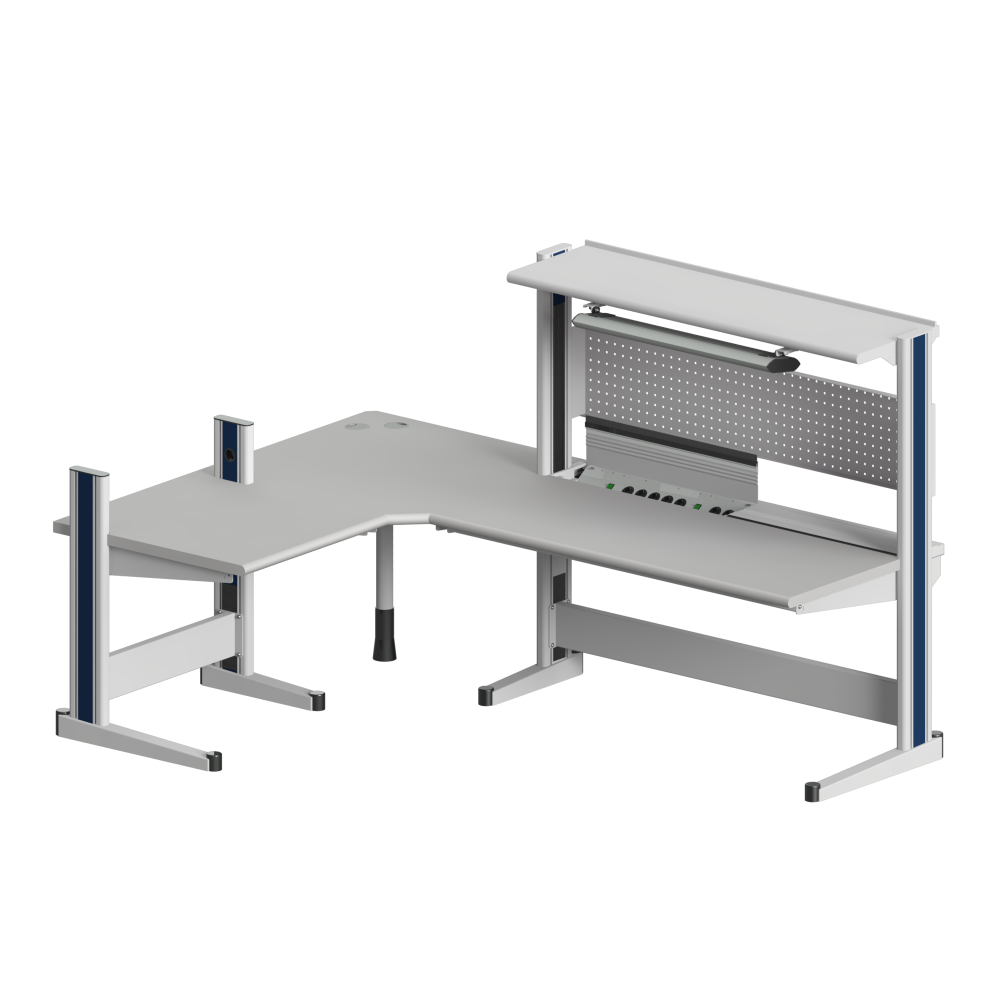

- Legroom for corner table combinations thanks to shortened foot sections

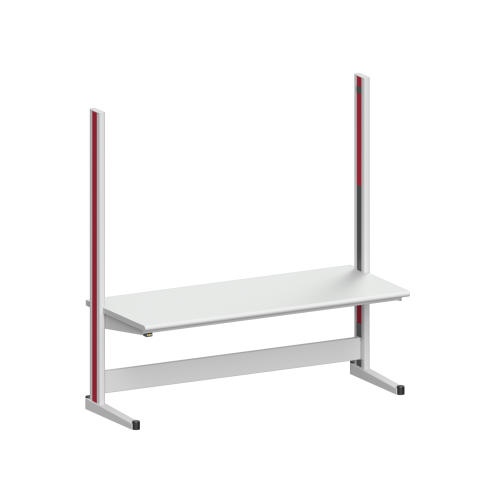

Basic table system
- Stepless height adjustment of the table top and accessories
- Load capacity: max. surface load 200 kg
- Steel frame for mounting the table top
- Cross connection between the QUADRO columns for stabilization
- Conductive powder-coated, (RAL 7035)
- QUADRO columns with internal brush strip for cable entry
- Color accents through decorative elements in the columns
- Foot section with two easy-to-operate, conductive height adjustment elements for leveling the worktables

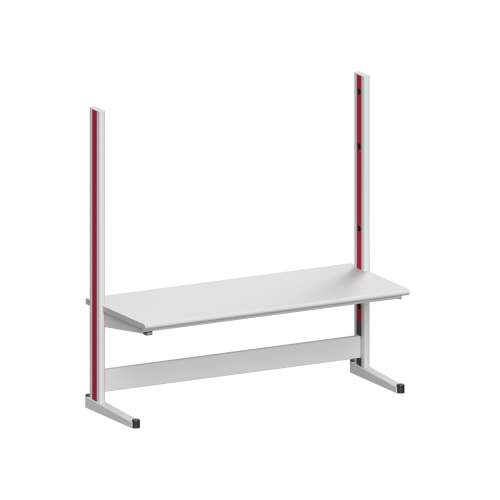

Table system with integrated socket strips
- Depending on the column height, with 2, 3 or 4 pre-wired Schuko sockets in a QUADRO column, ready for connection with WINSTA plug
- Stepless height adjustment of the table top and accessories
- Load capacity: max. surface load 200 kg
- Steel frame for mounting the table top
- Cross connection between the QUADRO columns for stabilization
- Conductive powder-coated, (RAL 7035)
- Other QUADRO column with internal brush strip for cable entry
- Color accents through decorative elements in the columns
- Foot section with two easy-to-operate, conductive height adjustment elements for leveling the worktables
Table system with cable tray and cable feed-through
- Sheet steel cable tray under the table top with access to the QUADRO columns
- Table top at the rear with two integrated cable ducts (⌀ 80 mm) for access to the cable tray
- Stepless height adjustment of the table top and accessories
- Load capacity: max. surface load 200 kg
- Steel frame for mounting the table top
- Cross connection between the QUADRO columns for stabilization
- Conductive powder-coated, (RAL 7035)
- QUADRO columns with internal brush strip for cable entry
- Color accents through decorative elements in the columns
- Foot section with two easy-to-operate, conductive height adjustment elements for leveling the worktables

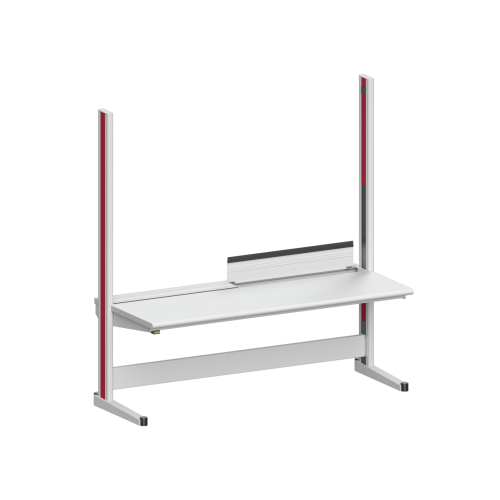

Table system including cable tray with flap
- Sheet steel cable tray under the table top with access to the QUADRO columns
- Cable tray in the rear area of the table top, easily accessible thanks to hinged covers
- Brushes embedded in the cover for easy cable routing when closed
- Side openings for access to the QUADRO columns
- the cable tray with flap can be equipped with an electrical insert strip for individual equipping with insert plates for power, data and media supply
- Table top depth: 650 mm

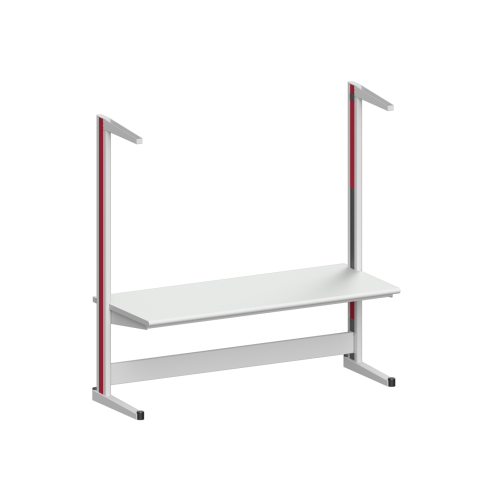

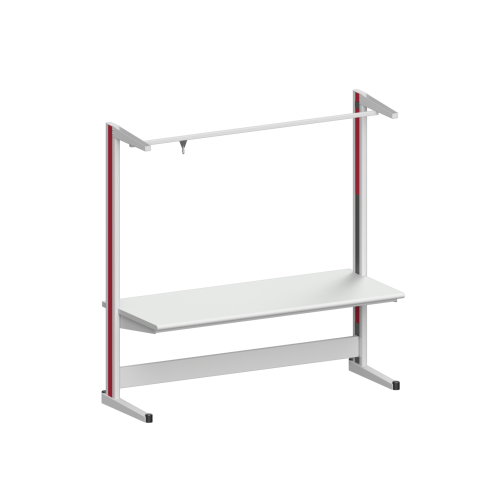

QUADRO running track
- Mounting on the bracket
- Including trolley with eyelet for attaching tools, balancers, etc.
- Load capacity: max. 22 kg
- Runner rail can be used continuously for in-line tables

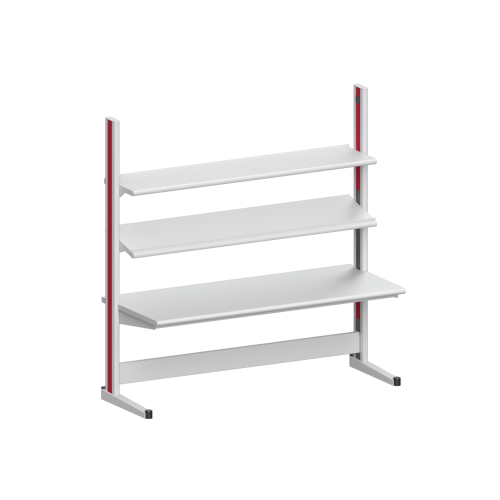

Shelf made of sheet steel
- Mounting on the bracket
- Rounded at the front
- D = 450 mm, H = 40 mm
- Infinitely height-adjustable and tilt-adjustable up to 25
- +/- 75 mm variable depth mounting
- 20 mm high board rail, can be mounted either at the front or rear
- Load capacity: max. surface load 50 kg
