ESD workbench – Customise your ESD workbenches

ESD protection is mandatory wherever electronic components are processed, tested or repaired.

Everyone KARL ESD workbench can be equipped with modularly combinable accessories:

• Rotating ESD shelves
• Height-adjustable ESD monitor arms
• ESD power supply units
• or ESD lighting systems

The result is a safe and comfortable workplace that is customised to your processes and employees.

Where else KARL ESD workbenches are used

ESD work tables from KARL can also be found in Workshops, training centres and service areas - wherever electronic devices are tested, maintained, refurbished or repaired. During training, they teach the correct handling of sensitive electronics right from the start and create a safe and comfortable learning environment.

Service and repair areas

When it comes to servicing and repairs, protecting sensitive electronics without compromise is what counts. Devices are opened, checked, components replaced and resealed. The ESD protection zone grow with every work step. Our modular ESD workbenches offer precisely the Flexible way of workingwhich is important in the service and repair sector:

• Accessories such as swivelling shelves, mobile earthing points and individually positioned socket strips.
• Antistatic work mats, ESD roller containers, shelving systems and conductive drawers also protect components during temporary storage.
• Height-adjustable ESD workbenches with a memory function make it possible to work sitting or standing for longer repair cycles or even shift work, so that fixed bench positions can be moved to at the touch of a button.

Training centres

The ESD workbench is an integral part of training in schools, universities and training workshops:

• Students learn how professional component protection works directly at the ESD workstation.
• The robust, easy-care design not only provides a safe learning environment, it also withstands daily and heavy use.
• KARL ESD workbenches can be configured for group or individual workstations and can be extended with ESD accessories for your learning environment.

Refurbishing and IT reconditioning

A structured and safe ESD workstation is essential for the professional refurbishment of used IT equipment or electronics.

• With modular shelves, drawers and anti-static work mats, the workstation remains clearly organised even with many individual parts.
• ESD-compliant cabling and a central earthing point ensure that components are not damaged by uncontrolled discharges, even if enclosures are opened and closed frequently.
• The resistant surfaces and robust construction of KARL ESD workbenches can withstand intensive use in shift operation.

ESD steht für „Electrostatic Discharge“, also elektrostatische Entladung – eine kaum wahrnehmbare, aber potenziell schädliche Spannung, die entsteht, wenn sich Materialien durch Reibung unterschiedlich aufladen. Ein ESD-Arbeitstisch leitet elektrostatische Ladungen sicher ab und verhindert, dass empfindliche elektronische Bauteile dadurch Schaden nehmen.

Und so funktioniert der KARL ESD-Tisch:

Leitfähige Tischplatte aus HPL.

Unsere Tischplatten bestehen aus hochwertigem HPL (High Pressure Laminate) mit einem definiertem Oberflächenwiderstand (typisch 10^6 bis 10^8 Ohm). Diese Oberfläche leitet elektrostatische Ladungen kontrolliert ab und erfüllt damit die Anforderungen der DIN EN 61340-5-1.

Pulverbeschichtetes Stahlgestell.

Auch das Gestell unserer ESD-Arbeitstische ist elektrisch leitfähig. Dazu ist es mit einer speziellen, ableitfähigen Pulverbeschichtung versehen. Zusammen mit der Platte bildet es ein durchgängiges ESD-Schutzsystem. Durch seine stabile Konstruktion trägt es problemlos auch schwere Messgeräte oder Montagematerialien bei industriellen Anwendungen.

Zentraler Erdungspunkt.

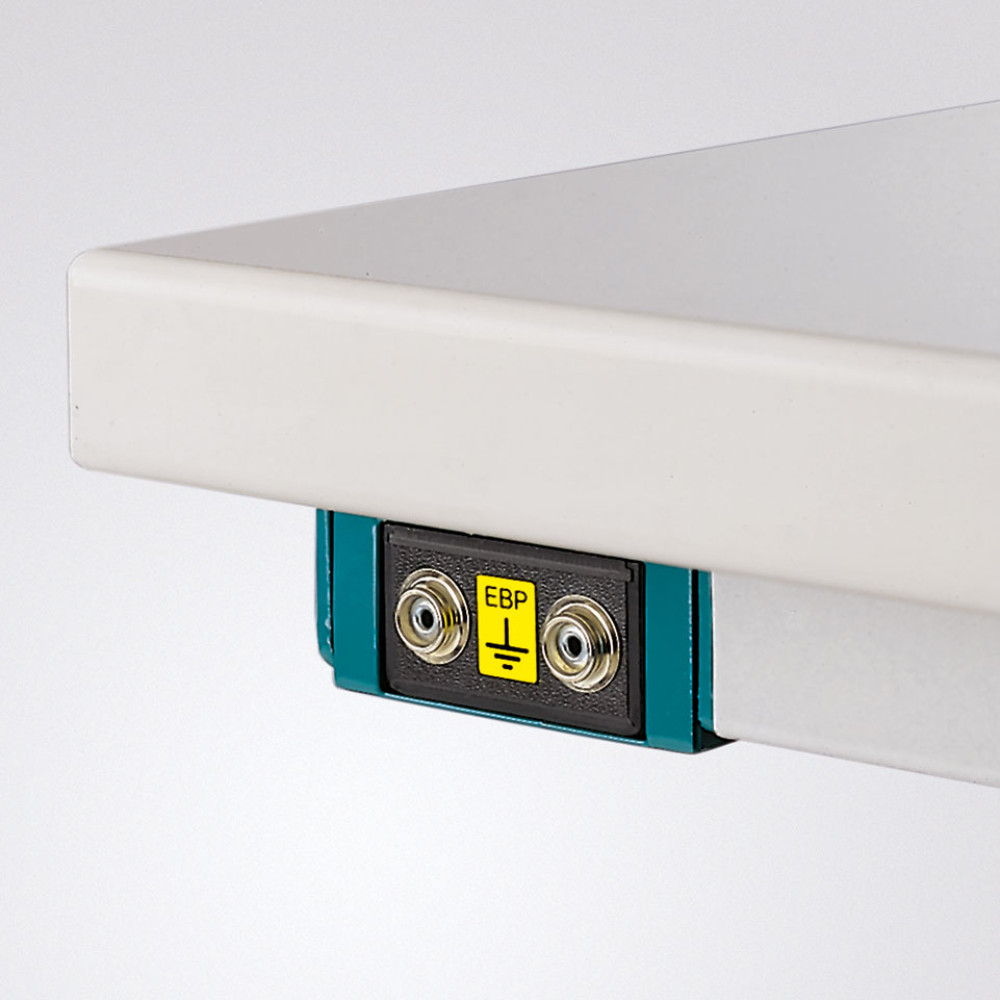

Jeder KARL ESD-Arbeitstisch verfügt über einen klar gekennzeichneten Erdungsanschluss. Handgelenkbänder oder Fußmatten können hier ebenfalls angeschlossen werden, um den Menschen, der am ESD-Tisch arbeitet, zuverlässig zu erden. Zwischen Erdungspunkt und Erde ist ein 1 MOhm-Sicherheitswiderstand verbaut, der bei Fehlerströmen Mensch und Gerät schützt

Ableitfähiges Zubehör.

Wir haben ein umfangreiches Sortiment an ESD-Zubehör für ESD-Arbeitstische: von Schubladen über Monitorarme, Regalsysteme, Rollcontainer bis hin zur Beleuchtung, die sich in das ESD-Schutzsystem einfügen.

Ergonomische Varianten.

Wir bieten auch manuell und elektrisch höhenverstellbare ESD-Arbeitstische (650–1270 mm) sowie kippbare Tischplatten für ergonomisches und komfortables Arbeiten am Tisch.

A KARL ESD workbench is just one building block in your comprehensive ESD protection concept. To reliably prevent electrostatic discharges and protect your employees, all components and processes in your production or laboratory must be harmonised.

This means:

• Floors, chairs and tools that are conductive.
• ESD clothing and personal earthing.
• Shield and neutralise charges.
• Establish clear rules and regularly train employees in ESD protection.

You can find more information in the KARL ESD guide and on the following pages:

What is ESD?

ESD protection: basics, measures, tips

ESD: Rules of behaviour and standards

With our range of ESD-compliant products, we help you to protect your entire ESD working environment. Safe and standardised to be equipped.

ESD workstation systems and furniture

Our modular SINTRO table programme is perfect for production and assembly. The tables can be infinitely adjusted in height, offer optimum reach paths and sophisticated material storage according to the FIFO principle ("First In, First Out"). The glare-free lighting, integrated power supply and ergonomic design ensure a pleasant working environment. All parts are powder-coated, conductive and therefore ESD-safe.

You can find out more here: SINTRO workstation system

Cabinet and shelving systems

We offer stable, functional cabinets and shelves made of conductive steel for the safe storage of components and tools. They fit into your work processes and ensure that ESD protection is maintained all round, even when storing your individual parts and components.

Our FIFO shelves also work according to the first-in-first-out principle and thus optimise work at the table.

You can find details of our shelving systems here:

KARL cupboard and shelving systems

KARL FIFO shelves

Transfer systems

We offer ESD-compliant transfer systems for flexible material transport within your production areas. This allows you to transport components and assemblies safely and electrostatically protected from A to B.

You can find more information here:

KARL transfer systems

Benefit from Over 50 years of experience in the ESD sector. Protect your sensitive components with modular and ergonomic ESD workbenches from KARL.

Contact us at any time for a personal consultation or a customised offer.
